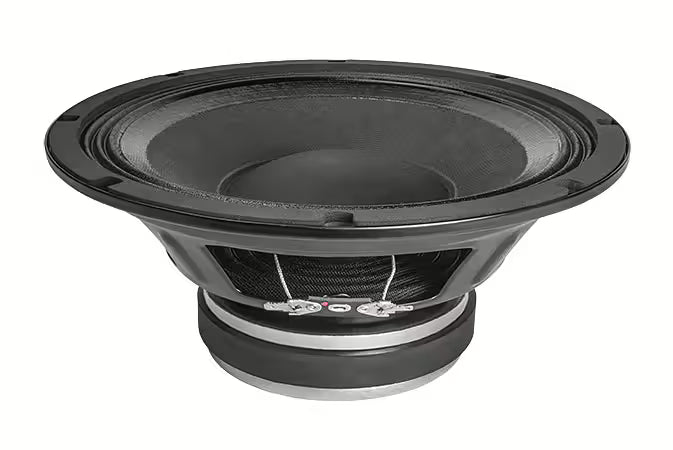

FaitalPro 10FE300 8OHM

NOMINAL SPECIFICATIONS Nominal Diameter 250 mm (10 in) Overall Diameter 260 mm (10.24 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 233 mm (9.17 in) Depth 110 mm (4.33 in) Flange and Gasket Thickness 7 mm (0.28 in) Net Weight 3.2 kg (7.1 lb) Shipping Box (Single Carton Box) 282 x 280 x 155 mm (11.1 x 11.0 x 6.10 in) Shipping Weight 3.7 kg (8.2 lb) TECHNICAL PARAMETERS Nominal Impedance 8 Ohm Minimum Impedance 6.8 Ohm AES Power Handling (1) 250 W Maximum Power Handling (2) 500 W Sensitivity (1W/1m) 96 dB Frequency Range 50÷4000 Hz Voice Coil Diameter 52 mm (2.05 in) Winding Material Al Former Material Glass Fiber Winding Depth 13.7 mm (0.54 in) Magnetic Gap Depth 8 mm (0.31 in) Flux Density 1.1 T Magnet Ferrite Ring Basket Material Steel Demodulation No Cone Surround (3) Triple Roll NET Air Volume filled by Loudspeaker 1.25 dm^3 (0.044 ft^3) Spider Profile 1x variable height waves

THIELE AND SMALL PARAMETERS Fs 50 Hz Re 5.8 Ohm Qes 0.54 Qms 13.1 Qts 0.52 Vas 50.5 dm^3 (1.78 ft^3) Sd 358 cm^2 (55.49 in^2) Xmax (4) 5.52 mm Xdamage (5) 13.1 mm Mms 35.9 g Bl 11.3 N/A Le 0.6 mH Mmd 28.2 g Cms 0.28 mm/N Rms 0.9 kg/s Eta Zero 1.20 % EBP 93 Hz PART NUMBER (P/N) Faston Terminals - 8 Ohm Version 02504321 NOTES: (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power. (3) Treated Polycotton (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) (5) Maximum excursion before permanent damage
